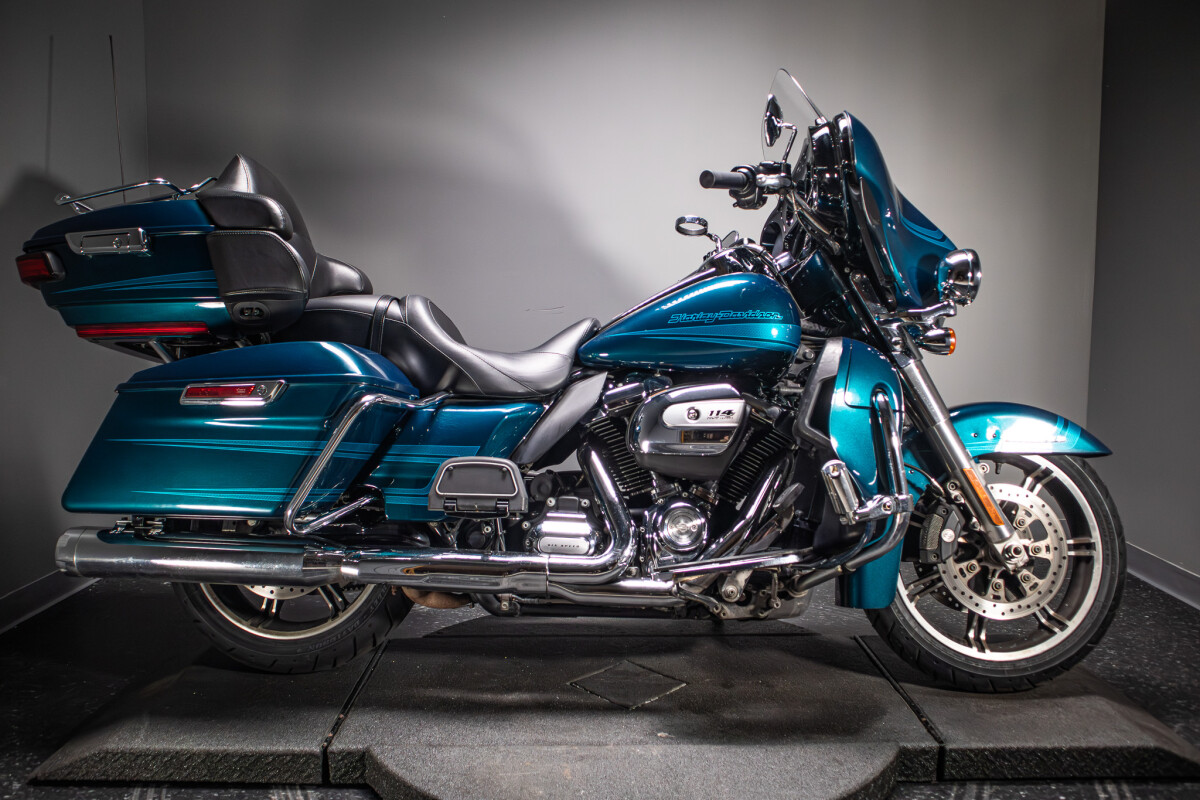

From its heated handgrips down to its Twin-Cooled™ Milwaukee-Eight® 114 engine, the Ultra Limited motorcycle helps you find your balance in its marriage of machinery and technology. When you're away from the bike, H-D™ Connect service lets you keep an eye on its vitals and security from your phone, while the integrated BOOM!™ Box GTS infotainment system keeps you plugged in for long rides. Need your bike to express your dark side? Check out the new bold black finish that engulfs the entire bike, from its wind-cutting, vented batwing fairing back to its roomy Tour-Pak® carrier.

Specifications

Dimensions

add remove
- Length:

  102.4 in
- Ground clearance:

  5.3 in
- Rake (steering head):

  26
- Trail:

  6.7 in
- Wheelbase:

  1,625.0 in
- Tires, front specifications:

  BW 130/70B18 63H
- Tires, rear specifications:

  BW 180/55B18 80H
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  880 lbs
- Weight, in running order:

  917 lb
- Luggage capacity – volume:

  4.7 cu ft (0.132 m3)
Engine

add remove
- Engine:

  Twin-Cooled™ Milwaukee-Eight™ 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  Chrome, 2-1-2 dual exhaust with tapered mufflers
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  122.4 ft-lb
- Lean angle, right (deg.):

  32
- Lean angle, left (deg.):

  32
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  0.00 mpg
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
Chassis

add remove
- Wheels, optional style type:

  Gloss Black Slicer II
- Wheels, front type:

  Slicer II cast aluminum with clear coat
- Wheels, rear type:

  Slicer II cast aluminum with clear coat
- Brakes, caliper type:

  32 mm, 4-piston fixed front and rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, running lights, front fender running lights, directional lights, neutral, low oil pressure, engine diagnostics, accessory, speakers, turn signals, security system, gear indication, battery, low fuel warning, cruise control, ABS, fog/aux lamp in
- Gauges:

  Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
Infotainment

add remove
- Infotainment system:

  Boom!™ Box GTS
- Type:

  Full Color TFT
- Watts per channel:

  25
- Speakers:

  4
- Speaker size:

  5.25 inch standard
- Headset specifications (if equipped):

  16-64 ohms
- AM:

  Standard
- FM:

  Standard
- Weather Band (WB):

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Sirius^XM Presets:

  20 - P&A Upgrade (USA & Canada only)
- Languages:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Voice Recognition Languages: Tuner / Media / Navigation:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Text-to-Speech (TTS) languages:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Rider / passenger intercom:

  Standard
- Vehicle information screen:

  Standard
- USB:

  USB/MTP/iPod/iPhone
- Bluetooth:

  Phone/Media Supported
